Name: DH series granulation flow chart

Keywords: DH series granulation flow chart
Description: Capacity of one set of DH450: 1.8~2.5t/h; Capacity of one set of DH650: 3.5~4t/h; The output was calculated as potassium chloride. Because of the different materials, the output is different. In addition, DH series, as well as DH240, DH360, DH850, DH1050 a…

Details

Capacity of one set of DH450: 1.8~2.5t/h; Capacity of one set of DH650: 3.5~4t/h; The output was calculated as potassium chloride. Because of the different materials, the output is different. In addition, DH series, as well as DH240, DH360, DH850, DH1050 and other models, the following layout scheme is for the user's reference only, and the specific layout of the program, our company technical personnel can be in accordance with user requirements, do detailed design.

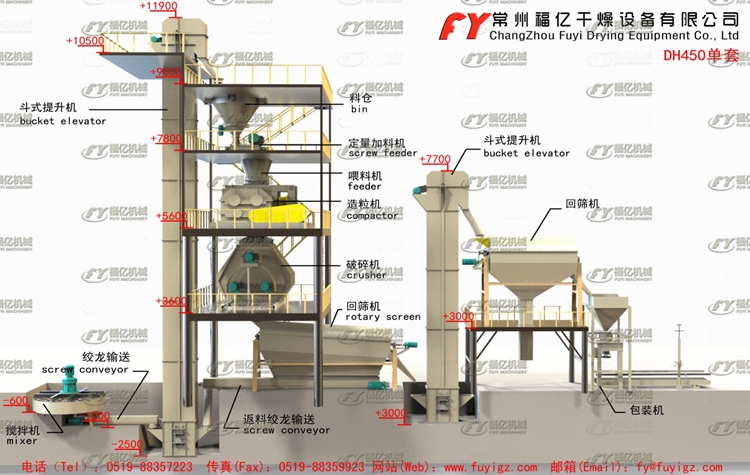

1、A flow chart of 2.5 tons (type DH450, taking potassium chloride as an example)

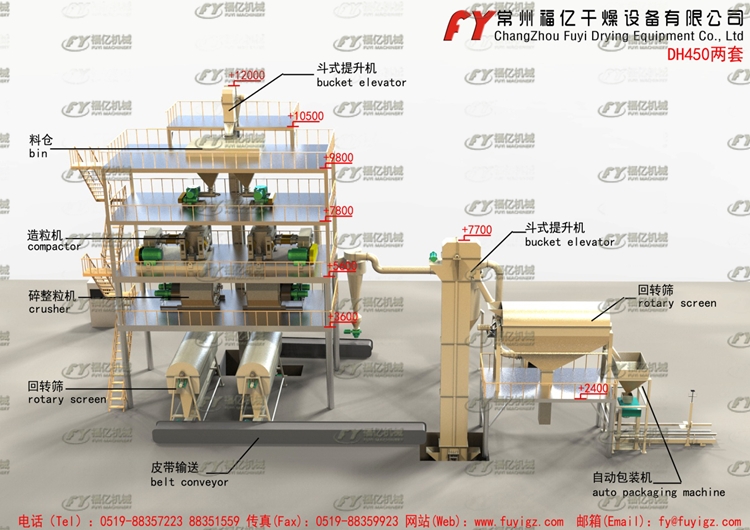

2、A flow chart of 5 tons (type DH450, taking potassium chloride as an example)

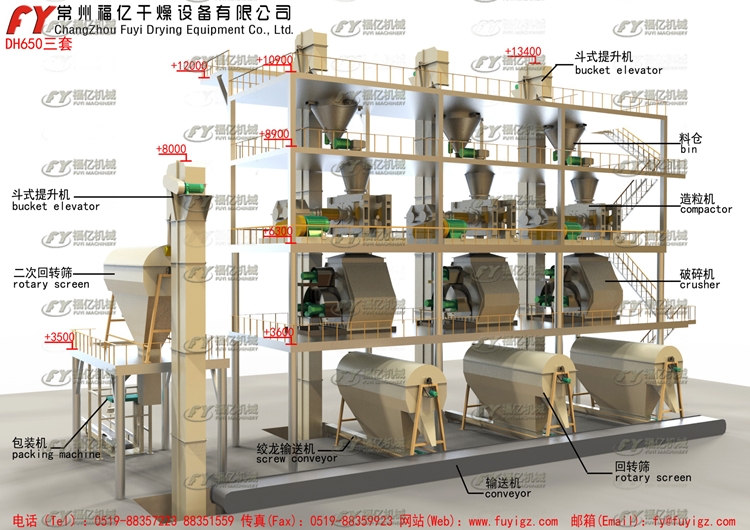

3、A flow chart of 10 tons (type DH650, taking potassium chloride as an example)

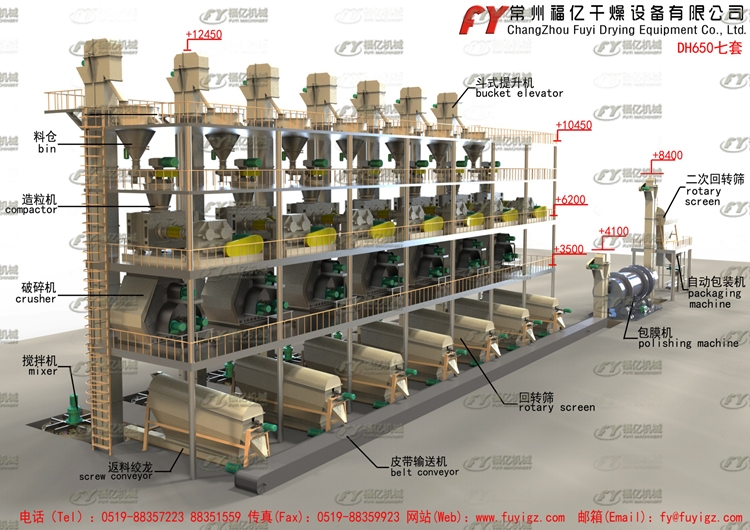

4、A flow chart of 25 tons (type DH650, taking potassium chloride as an example)

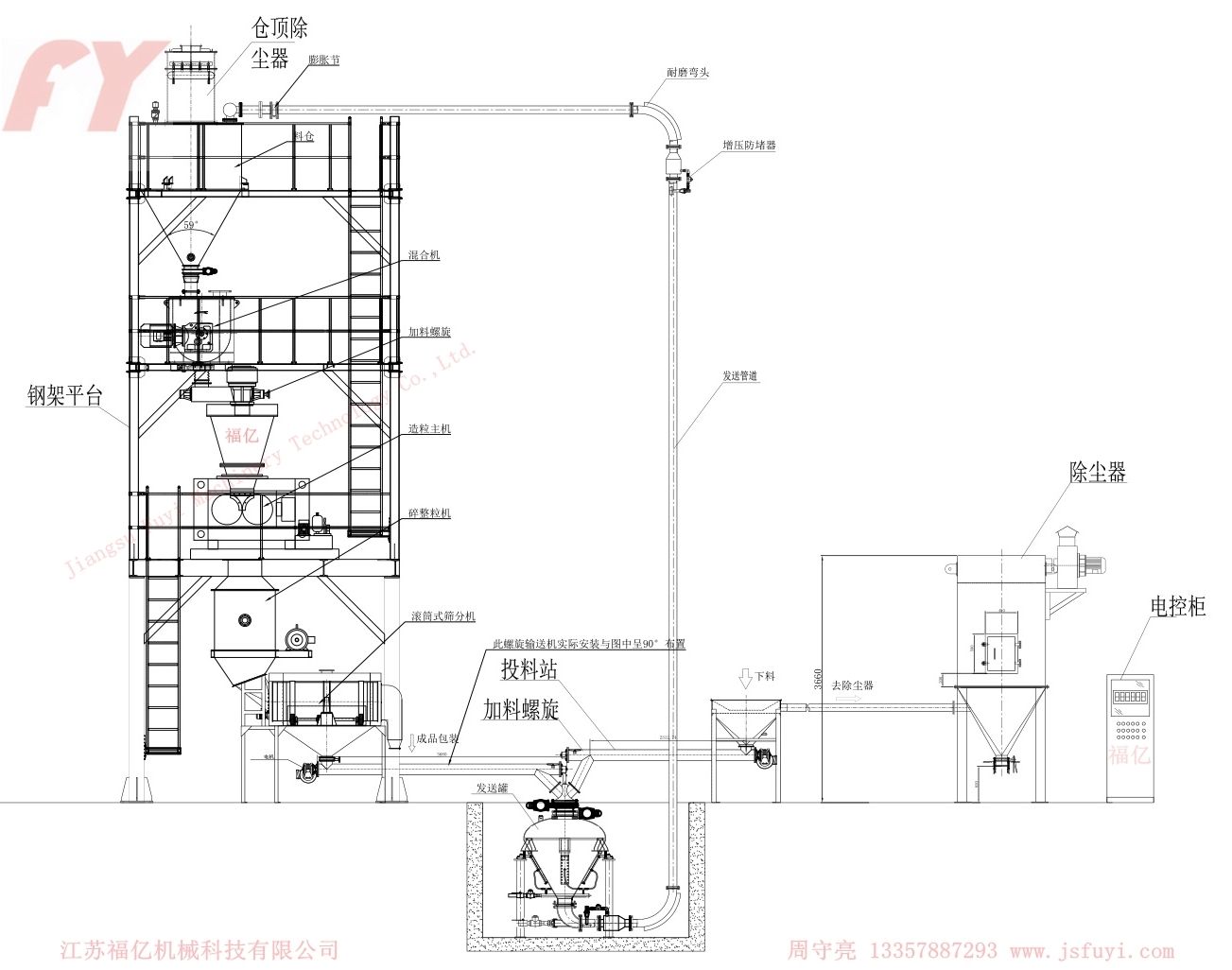

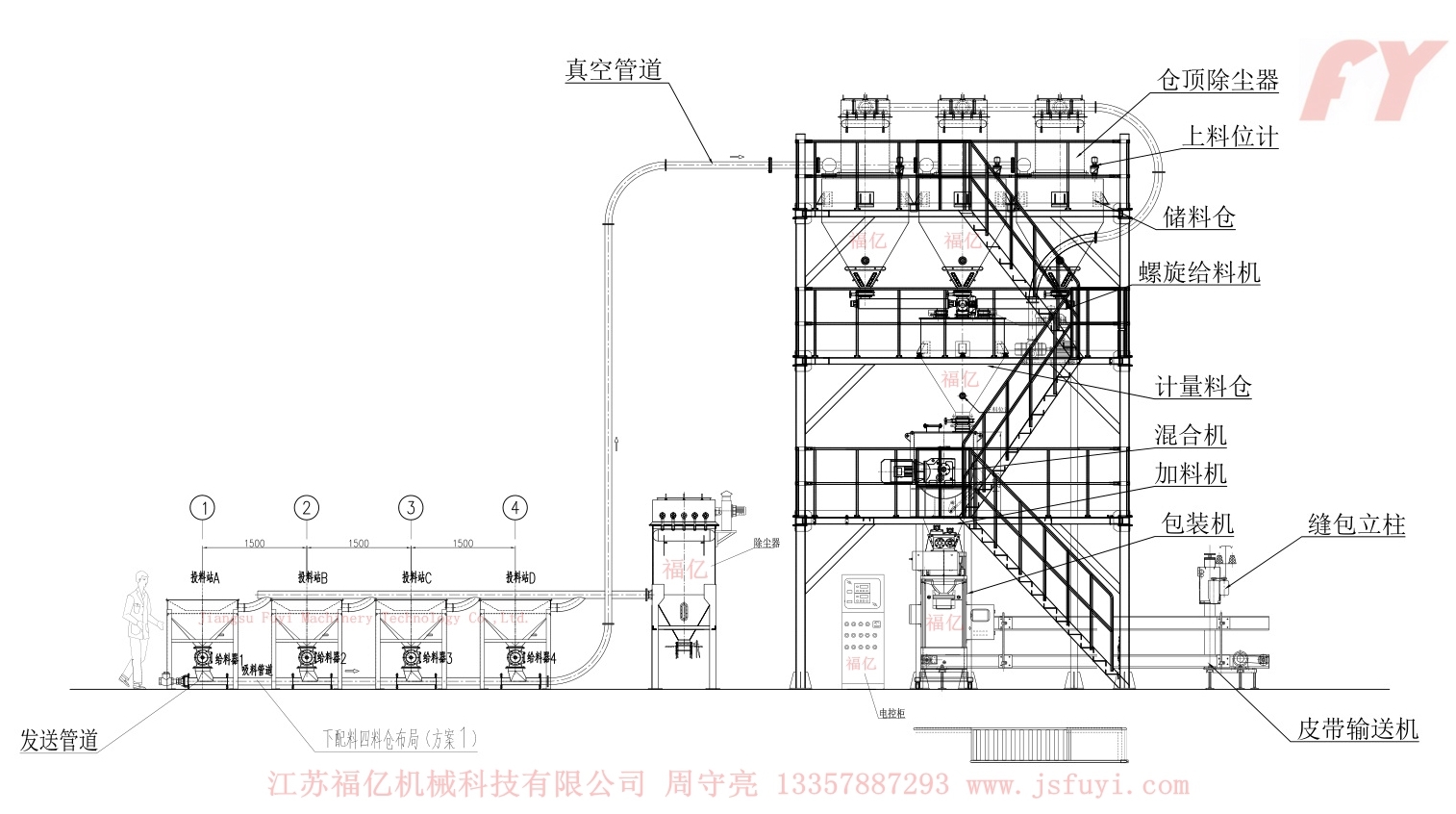

Pneumatic conveying granulation
