Name: HZS series rotary screen

Keywords: HZS series rotary screen
Description: Product overview:  HZS Series Rotary Screen mainly consists of motor, reducer, drum units, racks,etc. Inclination of drum equipment, motor is connected by reducer & the drum unit, the drive drum rotate around its axis. When the materials …

Details

Product overview:

      HZS Series Rotary Screen mainly consists of motor, reducer, drum units, racks,etc. Inclination of drum equipment, motor is connected by reducer & the drum unit, the drive drum rotate around its axis. When the materials go into the drum unit, due to the inclination and the rotation of drum unit, it makes qualified materials come out by the outer screen, substandard materials come out by the end of rotary screen.

      This series of rotary screen work fine, durable frame with steel welding, large funnel volume , welded steel plate. Drum unit is sealed by the cover of body, to ensure equipment in the work process, prevent dust escape and eliminate dust pollution. When replace screen, simply open the lid of the body to change, easy to operate

The main technical parameters of HZS Series Rotary Screen:



Model

HZS-1.0

HZS-1.2

HZS-1.5

HZS-1.8

HZS-2.0

HZS-2.2

Drum diameter (mm)

1000

1200

1500

1800

2000

2200

Drum length (mm)

3500

3500

4000

7000

6000

8000

Obliguity(°)

4

4

4

4

4

4

Speedr/min

17

17

17

15

15

15

Motor power(kw)

4

4

5.5

18.5

18.5

22

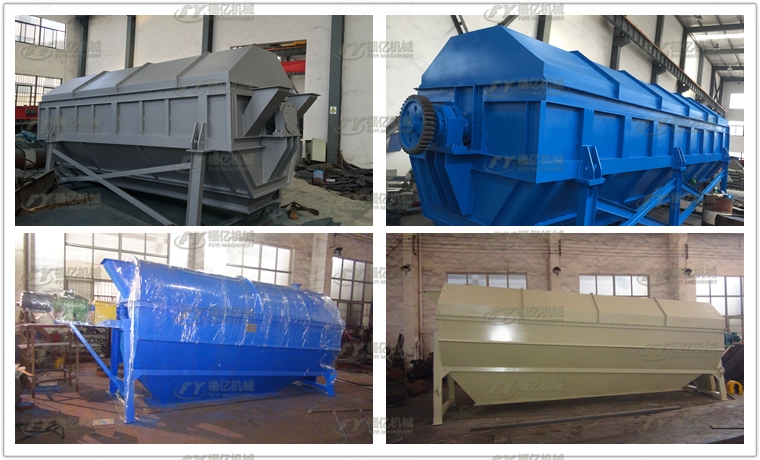

Equipment on stock

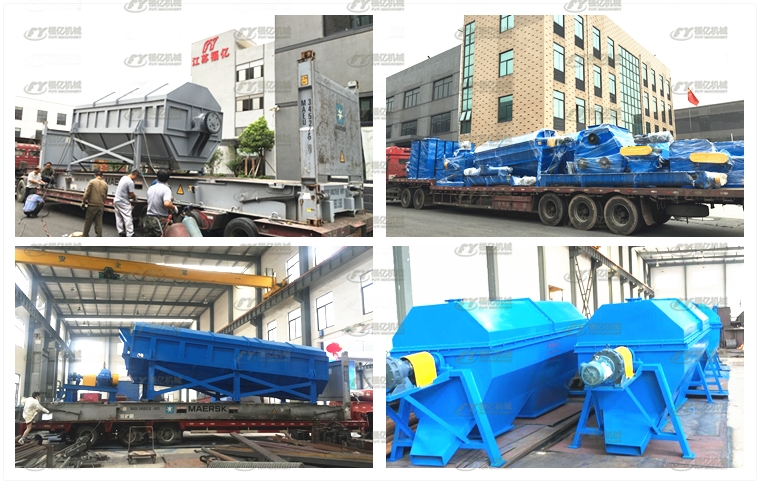

Delivery on site

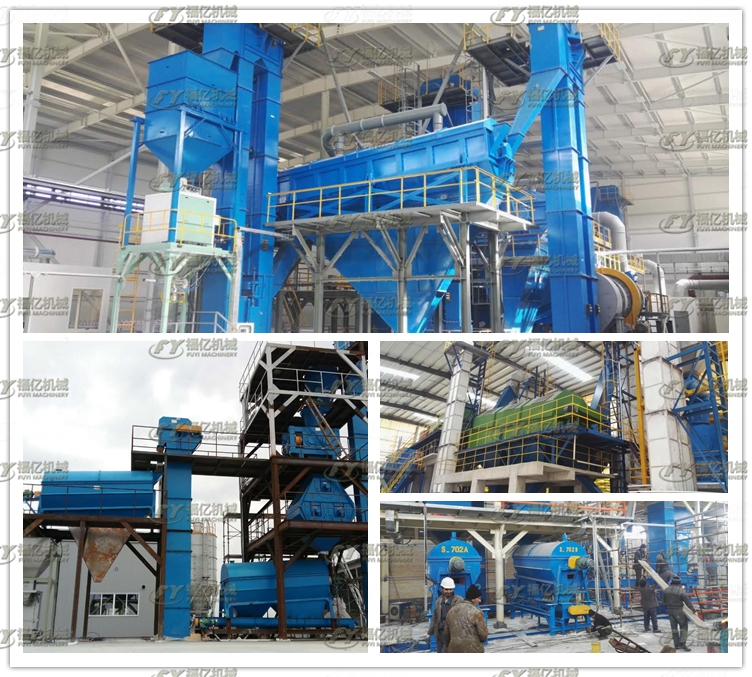

User on site
