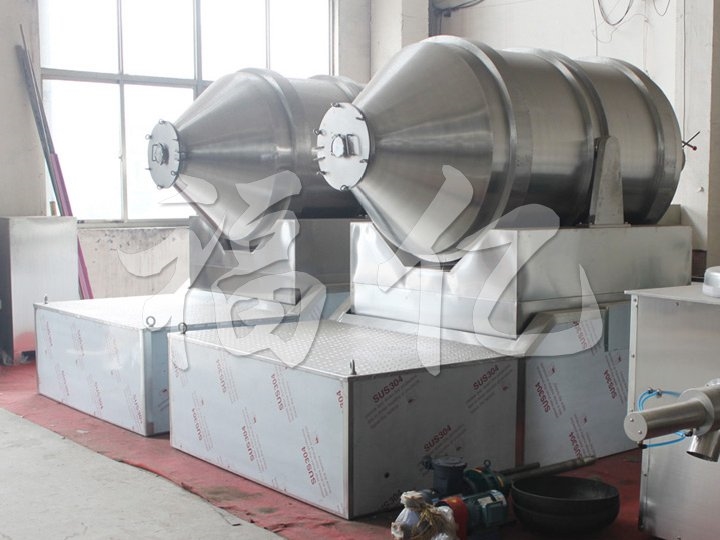

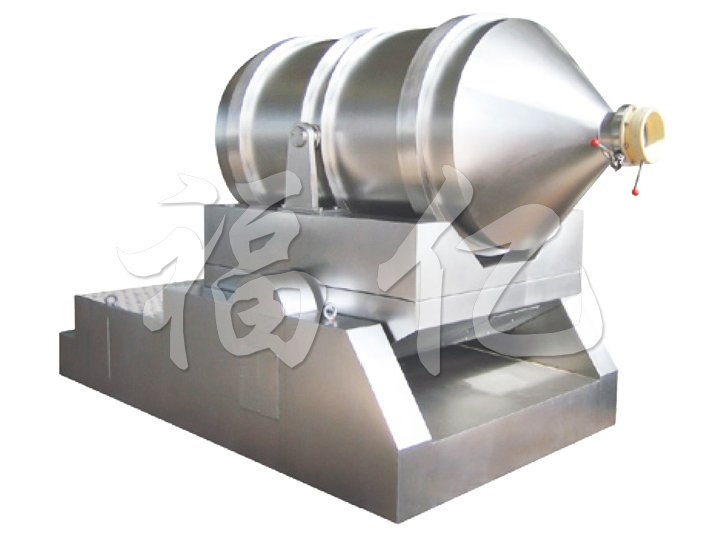

Working principle
The two-dimensional mixer is mainly composed of three parts, a revolving drum, a swinging rack and a frame. The rotor is mounted on the swing frame. It is supported by four rollers and is positioned by two wheel wheels in axial direction. In four support rollers, one of the two driving wheel by rotating power system to drive the cylinder rotate, the swinging rack is composed of a set of crank rocker mechanism to drive the crank rod mechanism on the frame and the swinging rack is supported on the frame.
Performance characteristics
EYH Two Dimensions mixer rotary drum of the mixer can carry out two movements simultaneously, one is the rotation of the rotating drum, and the other is the swing of the rotary drum with the swinging frame. At the same time by the mixed material in the drum with the drum to rotate, flip, mixed, with drum and swing back and forth about the mixing movement in these two motions, materials can be mixed fully in a short period of time. EYH two dimensional mixer is suitable for mixing all the powder and granule materials.

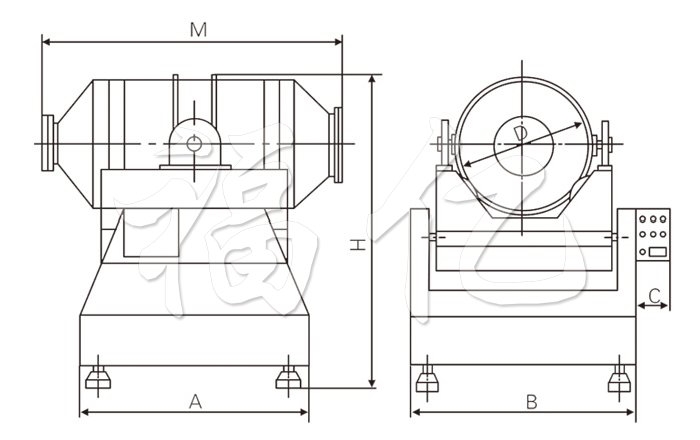

Schematic drawing
Technical specifications
|
Specification model |
Volume（L） |
Loading coefficient |
Feed weight |
Overall size（mm） |
Power（kw) |
||||||
|
A |
B |
C |
D |
M |
H |
rotary |
swing |
||||
|
EYH100 |
100 |
0.5 |
40 |
860 |
900 |
200 |
400 |
1000 |
1500 |
1.1 |
0.75 |
|
EYH300 |
300 |
0.5 |
75 |
1000 |
1100 |
200 |
580 |
1400 |
1650 |
1.1 |
0.75 |
|
EYH600 |
600 |
0.5 |
150 |
1300 |
1250 |
240 |
720 |
1800 |
1850 |
1.5 |
1.1 |
|
EYH800 |
800 |
0.5 |
200 |
1400 |
1350 |
240 |
810 |
1970 |
2100 |
1.5 |
1.1 |
|
EYH1000 |
1000 |
0.5 |
350 |
1500 |
1390 |
240 |
850 |
2040 |
2180 |
2.2 |
1.5 |
|
EYH1500 |
1500 |
0.5 |
550 |
1800 |
1550 |
240 |
980 |
2340 |
2280 |
3 |
1.5 |
|
EYH2000 |
2000 |
0.5 |
750 |
2000 |
1670 |
240 |
1100 |
2540 |
2440 |
3 |
2.2 |
|
EYH2500 |
2500 |
0.5 |
950 |
2200 |
1850 |
240 |
1160 |
2760 |
2600 |
4 |
2.2 |
|
EYH3000 |
3000 |
0.5 |
1100 |
2400 |
1910 |
280 |
1220 |
2960 |
2640 |
5 |
4 |
|
EYH5000 |
5000 |
0.5 |
1800 |
2700 |
2290 |
300 |
1440 |
3530 |
3000 |
7.5 |
5.5 |
|
EYH10000 |
10000 |
0.5 |
3000 |
3200 |
2700 |
360 |
1800 |
4240 |
4000 |
15 |
11 |
|
EYH12000 |
12000 |
0.5 |
4000 |
3400 |
2800 |
360 |
1910 |
4860 |
4200 |
15 |
11 |
|
EYH15000 |
15000 |
0.5 |
5000 |
3500 |
3000 |
360 |
2100 |
5000 |
4400 |
18.5 |
15 |
Note: the material density shall be 0.6g/cm3. If it exceeds, please indicate when ordering.
