Summary

The XSG Rotary Flash Evaporation Dryer is new and high-efficiency fluidized drying equipment which is researched and developed for the sake of overcoming the low—efficiency and high- consumed static drying by our company. We have joined the characteristics of ordinary fluidized drying such as air stream drying, in designing process, and have developed advantaged and reduced shortcoming with the advantageous usage function. All this really helps the rotary drying equipment to realize the target of the consuming and high efficiency of the fluidized drying.

Working principle

Hot air enters into stirring and drying chamber from the bottom of dryer with suitable atomizing speed. It exerts strong shearing, blowing, floating and rotating effect to raw material. Therefore raw material is granulated through centrifugation, shearing, impacting and friction effect. It strengthens the process of heat exchange. At the bottom of rotary flash dryer, the large and damp granule is crushed under the action of stirrer and the granule that is small in particle and contain less moisture will lift accompanied with revolving air stream. During the period of lift, it is dried further. Because gas and solid two phases flow in heat exchange, so the evaporation dryer has strong drying capacity.

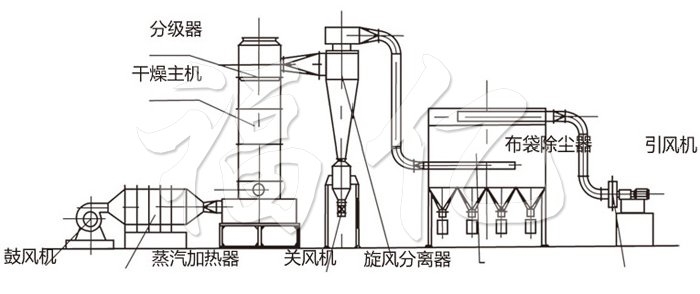

Process flow diagram

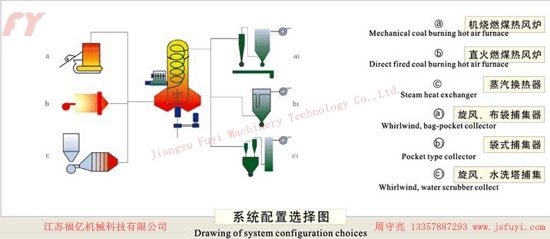

Flash diagrammatic sketch


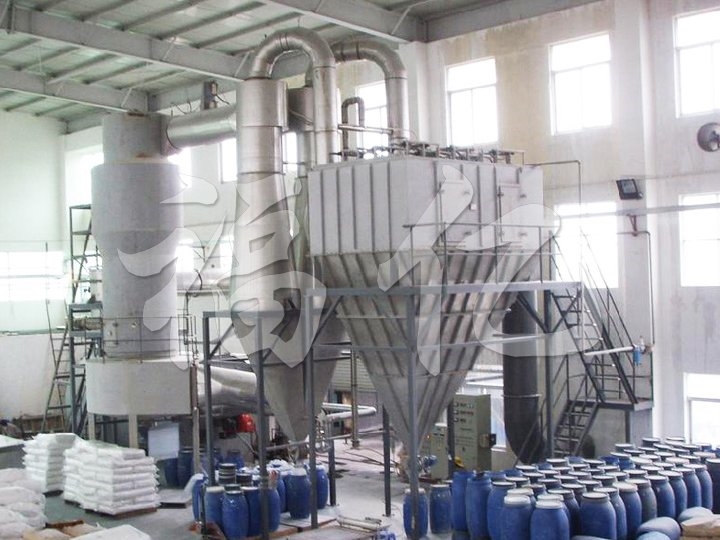

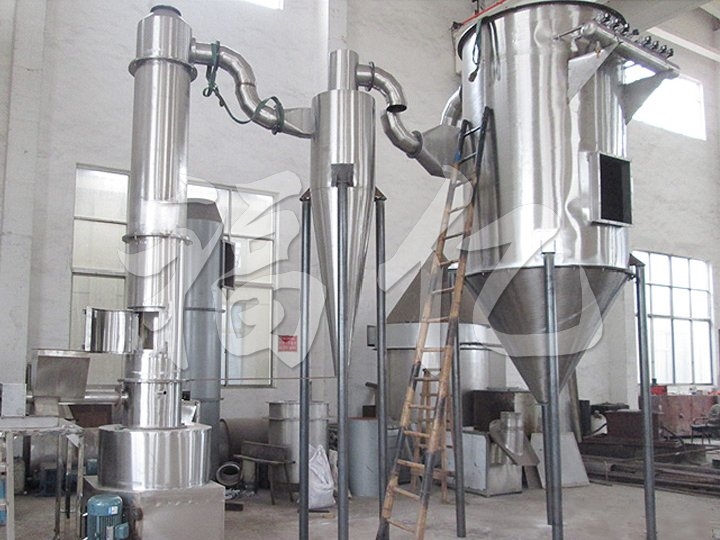

Features of this rotary drying equipment:

1. Hot air enters into stirring and crushing and drying chamber from the bottom of drier with suitable atomizing speed. It exerts strong shearing, blowing, floating and rotating effect to raw material

2. Dry gas enters into the bottom of drier, generating strong rotating airflow, thus making a strong rushing effect for the material stuck on the wall to eliminate the phenomenon that the material stuck on the wall.

3. In the high temperature zone of the bottom of dryer, heat sensitive material does not close contact with hot surface, and special device was equipped at the bottom of dryer to solve the problem that the coking discoloration of heat-sensitive materials.

4. Due to the high speed of gas at circle inside the drying chamber and the staying time of raw material is short, high efficiency and quick speed can be realized

5. There are elutriation ring and rotating flow at the top of the drying chamber to control the size and temperature of the product. So it can meet the requirement moisture and granule of different raw material.

6. The circle speed in the drying chamber is high and the material staying time is short, so it effectively provides the materials from being sticking to wall and heat sensitive materials.


Application scope of the rotary flash dryer:

Organics: Atrazine (pesticides), lauric acid cadmium benzoic acid, sodium oxalate, sterilization Dan, cellulose acetate, organic pigments, etc

Dyestuff: Anthraquinones, black iron oxide, indigo dye, butyrate, titanium oxide, zinc sulfide, various azo dye intermediates

Inorganic substance: Borax, calcium carbonate, hydrogen peroxide, copper sulfate, ferric oxide, TanSuanBei, three antimony oxide, all kinds of metal salt, synthetic cryolite etc.

Foodstuff: Soybean protein, gelatinized starch, vinasse, triticum, wheat starch

Model

Diameter of barrel(mm)

Size of main machine(mm)

Power of main machine(KW)

Air processing volume(m3/h)

XSG-2

200

250×800

0.75-2.2

300-800

XSG-3

300

400×300

3-4

600-1500

XSG-4

400

500×500

4-7.5

1250-2500

XSG-5

500

600×000

5.5-11

1500-4000

XSG-6

600

700×200

7.5-18.5

2500-5000

XSG-8

800

900×600

11-18.5

3000-8000

XSG-10

1000

1100×000

15-30

5000-12500

XSG-12

1200

1300×200

15-37

10000-20000

XSG-14

1400

1500×400

30-55

14000-27000

XSG-16

1600

1700×1000

45-75

18700-36000



Dried Sample





Name of raw materials

Initial water content (%)

Final water content (%)

Inorganic slat

Harlsalz

Barium stearate

40

0.5

Zinc stearate

40

0.5

Aluminum stearate

45

2.0

Calcium stearate

40

2.5

Magnesium stearate

45

5.0

Carbonate

Manganese carbonate

20

1.0

Cerium carbonate

31

17(include crystal water)

Zinc carbonate

80

0.5

Calcium carbonate

30

0.2

Oxide

Zirconia

80

1.0

Iron oxide red

60

1.0

Zinc oxide

60

1.0

Chlorate

Aluminum hydroxide

55

1.0

Cuprous chloride

45

1.0

Sulfate

Sodium isocyanurate dioxide

25

1.0

Calcium sulfate

35

3.0

Sodium pyrosulfite

20

0.2

Other

Silica

85

0.5

Lead sulfate
