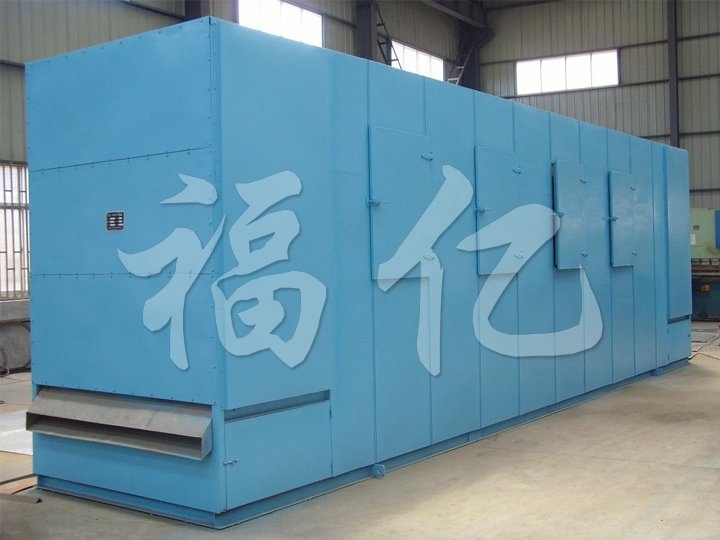

Name: DWT series belt drier

Keywords: DWT series belt drier
Description: Summary: The belt drier is composed of a number of independent units. Each unit comprises a circulating fan, a heating or heat source supplying system, an independent or public fresh air pumping system and a tail gas discharging system. So as to ensu…

Details

Summary:

      The belt drier is composed of a number of independent units. Each unit comprises a circulating fan, a heating or heat source supplying system, an independent or public fresh air pumping system and a tail gas discharging system. So as to ensure that the belt dryer with a strong maneuverability, suitable for most of the material drying.

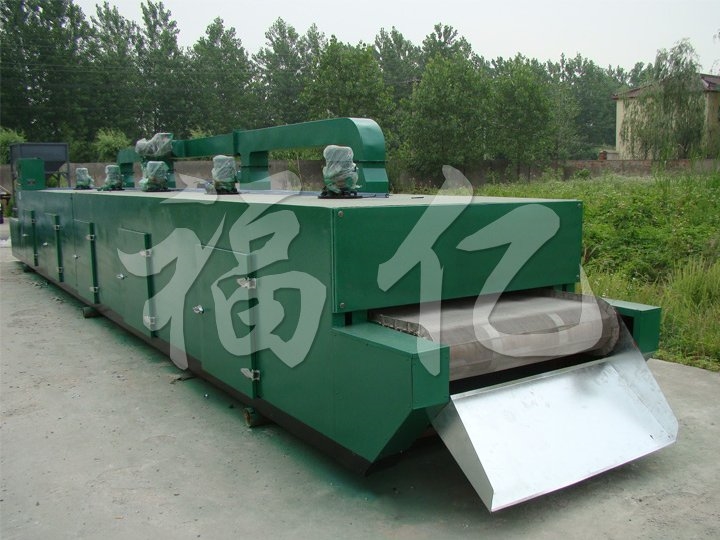

      Single layer belt type drying equipment: The dried material is evenly distributed on the conveyer belt through the feeding device from the feed inlet. The conveyer belt is made of a porous net, driven by the motor through the gearbox, can ajust speed. Dry medium is air, air is fed into the hot air furnace by the air blower to heat. Hot air with a certain temperature is fed into the belt dryer, through the distribution plate from the upper part of the conveyor belt to blow down. When the air flows through the dry material layer, moisture in the material is evaporated. Air humidification, temperature drop. A part of humid air is expelled from the housing. Another part is before the inhalation of circulation fan, mixing with fresh hot air that offered by hot blast stove and recycling. In order to make the material dewatered uniform, after blowing down, now blow up. Finally, the material is discharged from the conveyor belt after drying. Drying room is usually divided into several units in order to control operating parameters independently, optimize operation.

      Multi layer belt type drying equipment: Single layer belt type drying equipment stacked together vertically. Uniform circulation,  uniform  humidity-discharging, uniform heating. The equipment is suitable for the material with large output or the material with low drying temperature and longer drying time. The wet material have been dried is added from the top. When the conveyer belt carry the material moving to the other end,  fall into second layers of conveyer belt automatically. The conveyer belt is moving in the opposite direction.

      While the material dried is moving with the conveyor belt, the relative position of material particles is relatively fixed.  Having the same drying time. It is very suitable for some of the drying process is important for the color change of dry materials. In addition, the material on the belt machine subjected to vibration or impact slightly, the material particles are not easy to be broken, so it is also suitable for dry materials that do not allow cracking (such as food).


Operating Principle:

       The material is uniformly spread on the stainless steel net by feeder. The mesh belt uses generally 12-60 mesh stainless steel wire net and it is drawn and moved inside the dryer by a transferring device. The dryer is composed of several units. For each unit, hot air is circulated separately. In the first unit, air out from circulation air blower passes through beside in to low unit after air is up and heated by steam heater be shared by separator the air is sprayed through mesh belt in to top of the machine. The drying process is hot air passes through the mesh belt covered with special moisture from the top to the bottom or from the bottom to the top. This will complete the heat and mass transfer process. The air pipe of the top is connected with a fan, some air is recycled, and some is exhausted. Exhausted gas is discharged with a special moisture elimination blower and other waster gas is controlled through and adjustment valve. The top and low circulation units can be freely equipped according to the users’ requirement. The unit number can be selected according to the demand.


Characteristic:

1. Air volume can be adjusted, heating temperature, proper material retention time and feeding speed to obtain the best drying effect.

2. Flexible equipment preparation, conveyer belt can flush system and material cooling system.

3. Most of the air is recycled, saving energy too much.

4.Being adapted unique air dividing apparatus, it makes the hot air distribute uniform betterand guarantee the quality of products is constant.

Purpose:

The dryer belt is a common continuous drying equipment, it is widely used in chemical industry, food, medicine, building materials, electronic products and other industries, particularly suitable for materials of strip, granular, the leaves of which has good ventilation. For the materials with soft appearance, also can then be formed by the extrusion or pelleting to dry.
Typical products:

Dehydrated vegetables, granulated feed, aginomoto, chicken essence, coconut, organic pigment, synthetic rubber, acrylic fiber, medicine, medicinal materials, wooden products, plastic products,  curing and aging of electronic components, calcium carbonate., etc.
Technical parameter:

Model

DWT-1.2-8

DWT-1.2-1.0

DWT-1.6-8

DWT-1.6-10

DWT-2-8

DWT-2-10

Unit number

4

5

4

5

4

5

Belt width M

1.2

1.6

2

Drying section length M

8

10

8

10

8

10

Paving thickness mm

≤60

Service temperature

50-140

Vapour pressure Mpa

0.2-0.8

Steam consumption KG/H

120-300

150-375

150-375

170-470

180-500

225-600

Drying time H

0.2-1.2

0.25-1.5

0.2-1.2

0.25-1.5

0.2-1.2

0.25-1.5

Drying strength KG/H

60-160

80-220

75-220

95-250

100-260

120-300

Total equipment power kw

11.4

13.6

11.4

13.6

14.7

15.8

Overall size

 (L * w * h)

9.56×1.49×2.3

11.56×1.49×2.3

9.56×1.9×2.4

11.56×1.9×2.4

9.56×2.32×2.5

11.56×2.32×2.5

Weight(kg)

4500

5600

5300

6400

6200

7500

Description: the above parameters are for reference only. The drying strength is related to the material characteristics and the use of temperature.

Introduction of multi layer dryer

Summary

       DW series multilayer belt dryer is suitable for large-scale production of drying materials with low drying rate. The equipment has compact structure, small footprint, simple operation, convenient maintenance and stable operation. According to the drying characteristics of materials, different drying forms of hot air circulation are designed. It is the extension and improvement of hot air circulation oven. It is widely used in the fields of metallurgical assistants, chemical industry, food, packaging and so on. With the technical progress of enterprises and the improvement of the technical content of products, multilayer belt dryers have the ability to meet the needs of large scale production, diversification, centralized control and continuous production. It has the advantages of high efficiency, energy saving and easy management.


Technical specifications

Model

DW3-1.2-8

DW3-1.2-10

DW3-1.6-8

DW3-1.6-10

DW3-2-8

DW3-2-8

Unit number

4×3

5×3

4×3

5×3

4×3

5×3

Belt widthM

1.2

1.6

2

Drying section length M

8×3

10×3

8×3

10×3

8×3

10×3

Paving thickness mm

10-80

Service temperature

50-140

Vapour pressure Mpa

0.2-0.8

Steam consumption KG/H

360-600

420-720

450-840

480-960

480-960

630-1350

Heat exchange area

816

1020

056

1320

1344

1680

Drying strength KG water/H

150-450

220-550

240-600

280-750

280-750

350-900

Fan number

14

17

14

17

14

17

Total power of internal machinekw

30.8

37.4

42

51

56

68

Total power KW

35.3

41.9

46.5

55.5

60.5

72.5

Overall size

 (L * w * h)


9.77×2.2×4.5

11.77×2.2×4.5

9.77×2.6×4.7

11.77×2.6×4.7

9.77×3.06×4.9

11.77×3.06×4.9

Weight KG

4800×3

5780×3

5400×3

6550×3

6350×3

7800×3


DDW type Basic parameters of three layer dryer

Model

Unit

DW3-1.2-8

DW3-1.2-10

DW3-1.6-8

DW3-1.6-10

DW3-2-8

DW3-2-10

Belt width

M

1.2

1.6

2

Drying section length

M

8

10

8

10

8

10

Paving thickness

MM

10-50





Service temperature

50-120





Vapour pressure

Mpa

0.2-0.5





Water evaporation

Kg/h

80-220

100-320

90-300

120-380

130-400

180-500

Steam consumption





2kg蒸汽/蒸发1kg水(对于蔬菜及中药饮片)

Total power

Kw

21.2

21.2

21.2

22.7

22.7

22.7

Overall size

 (L * w * h)


M

11×1.6×2

12.5×1.6×2

11×2.0×2

12.5×2.0×2

11×2.4×2

12.5×2.4×2

Weight

Kg

3000

4000

4400

4550

4300

6000


DDW type Basic parameters of five layer dryer

Model

Unit

DDW7-1.2-8

DDW7-1.2-10

DDW7-1.6-8

DDW7-1.6-10

DDW7-2-8

DDW7-2-10

Belt width

M

1.2

1.6

2

Drying section length

M

8

10

8

10

8

10

Paving thickness

MM

10-50

Service temperature

50-120

Vapour pressure

Mpa

0.2-0.5

Water evaporation

Kg/h

120-300

160-400

150-375

190-475

200-500

240-600

Steam consumption



2kg Steam / evaporated 1kg water (for vegetables and Chinese herbs)

Total power

Kw

27

27

40.5

40.5

40.5

49

Overall size

 (L * w * h)


M

11×1.6×3.5

12.5×1.6×3.5

11×2.0×3.5

12.5×2.0×3.5

11×2.4×3.5

12.5×2.4×3.5

Weight

Kg

4800

5780

5400

6550

6350

7800


DDW type Basic parameters of seven layer dryer

Model

Unit

DDW7-1.2-8

DDW7-1.2-10

DDW7-1.6-8

DDW7-1.6-10

DDW7-2-8

DDW7-2-10

Belt width

M

1.2

1.6

2

Drying section length

M

8

10

8

10

8

10

Paving thickness

MM

10-50

Service temperature

50-120

Vapour pressure

Mpa

0.2-0.5

Water evaporation

Kg/h

120-300

160-400

150-375

190-475

200-500

240-600

Steam consumption



2kg Steam / evaporated 1kg water (for vegetables and Chinese herbs)

Total power

Kw

27

27

40.5

40.5

40.5

49

Overall size

 (L * w * h)


M

11×1.6×3.5

12.5×1.6×3.5

11×2.0×3.5

12.5×2.0×3.5

11×2.4×3.5

12.5×2.4×3.5

Weight

Kg

4800

5780

5400

6550

6350

7800
